Multi-Board Design

Purpose:

Design systems consisting of multiple interconnected boards

Ensure consistency between individual boards of the system

Capabilities and Features:

Combine multiple boards into a single project

Manage connections between boards (connectors, cables)

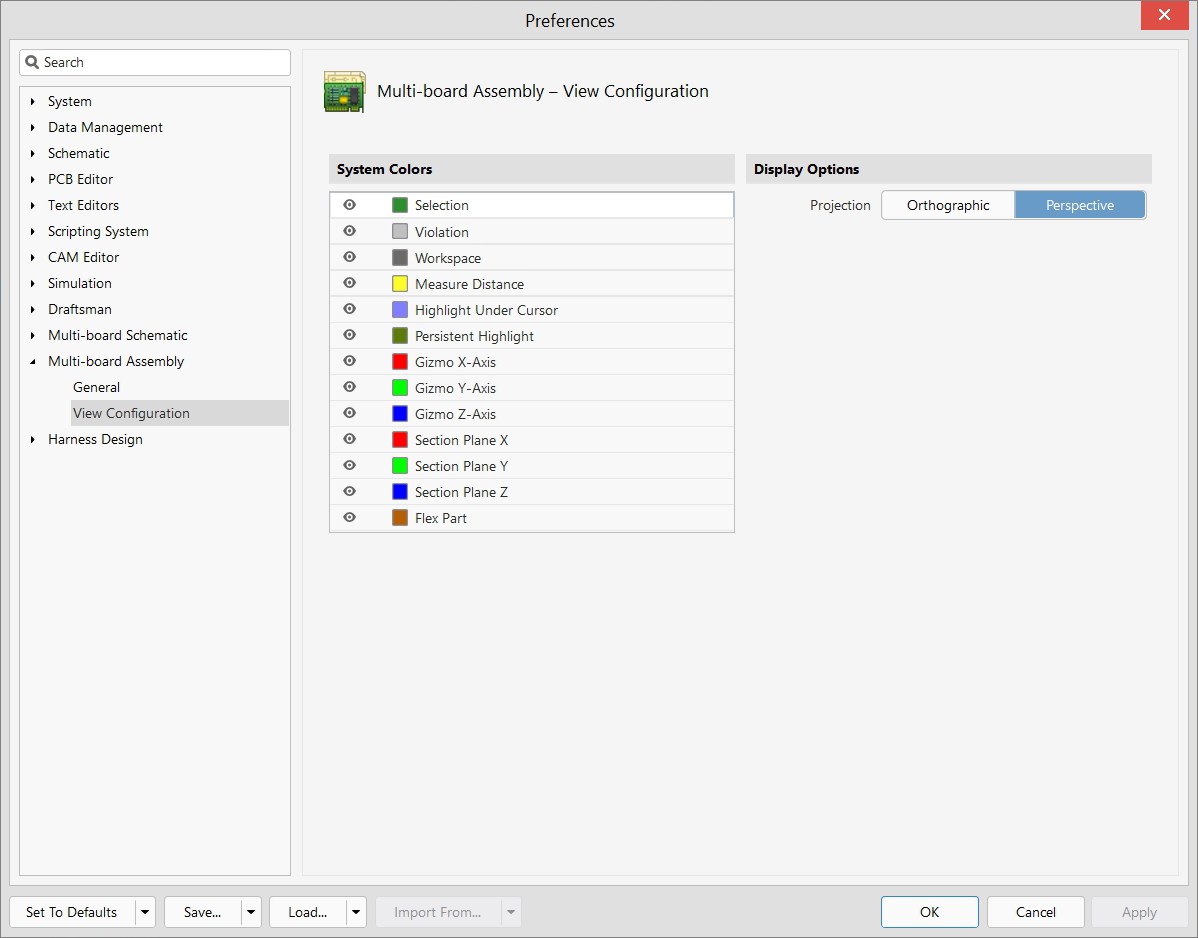

3D visualization of mutual board placement

Check mechanical collisions between boards

Synchronize changes between individual boards

Connections with Other Sections:

Interacts with 3D Visualization for layout verification

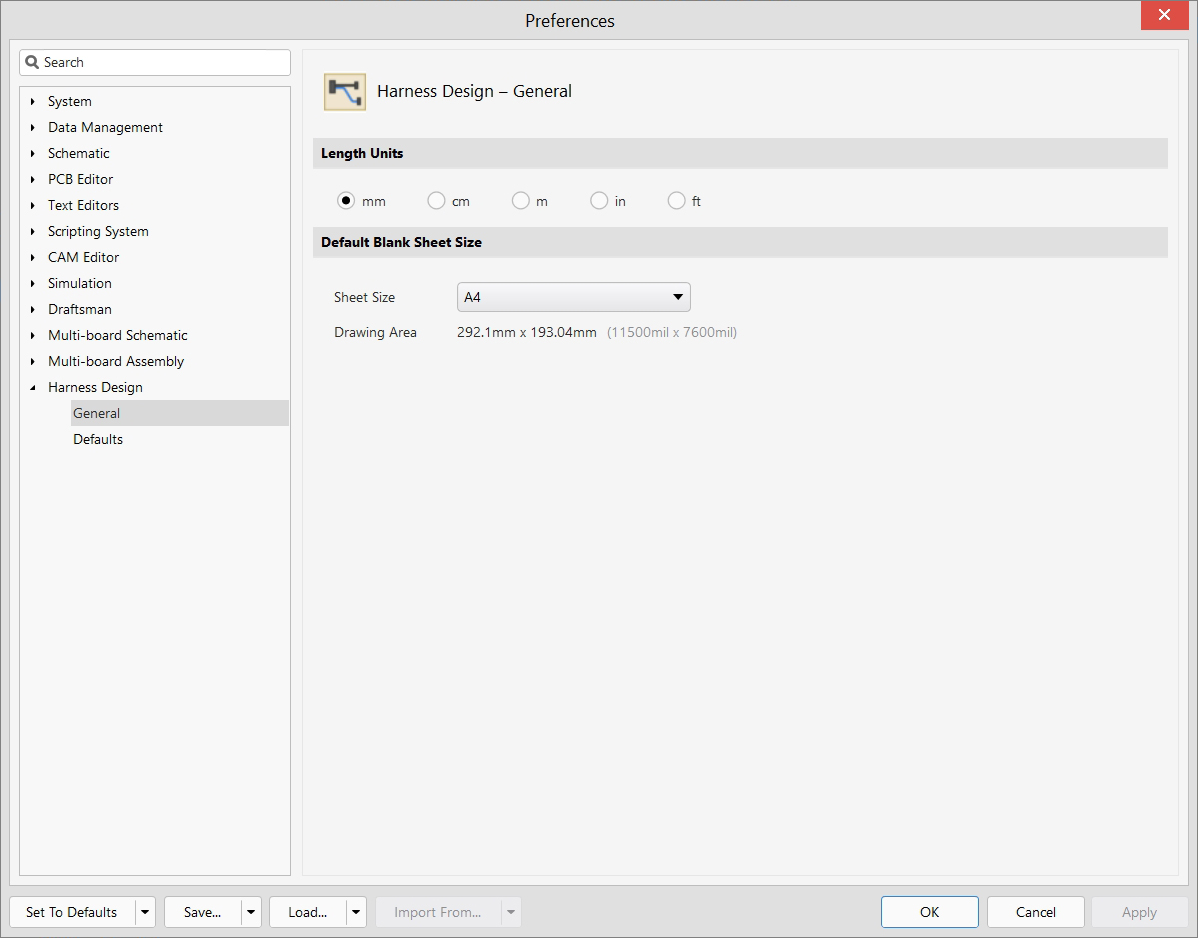

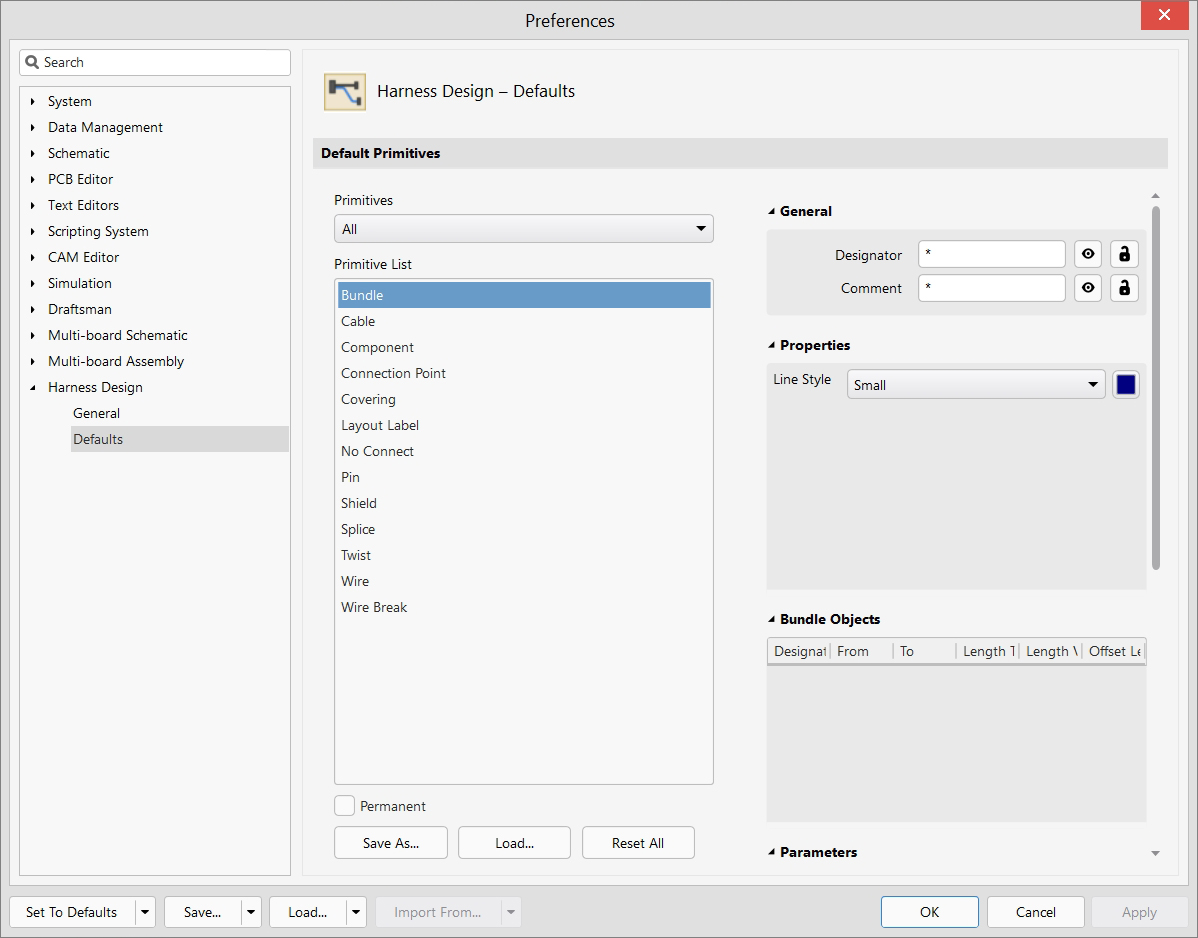

Integrates with Harness Design for inter-board connection design

Connected with MCAD CoDesigner for mechanical design coordination
